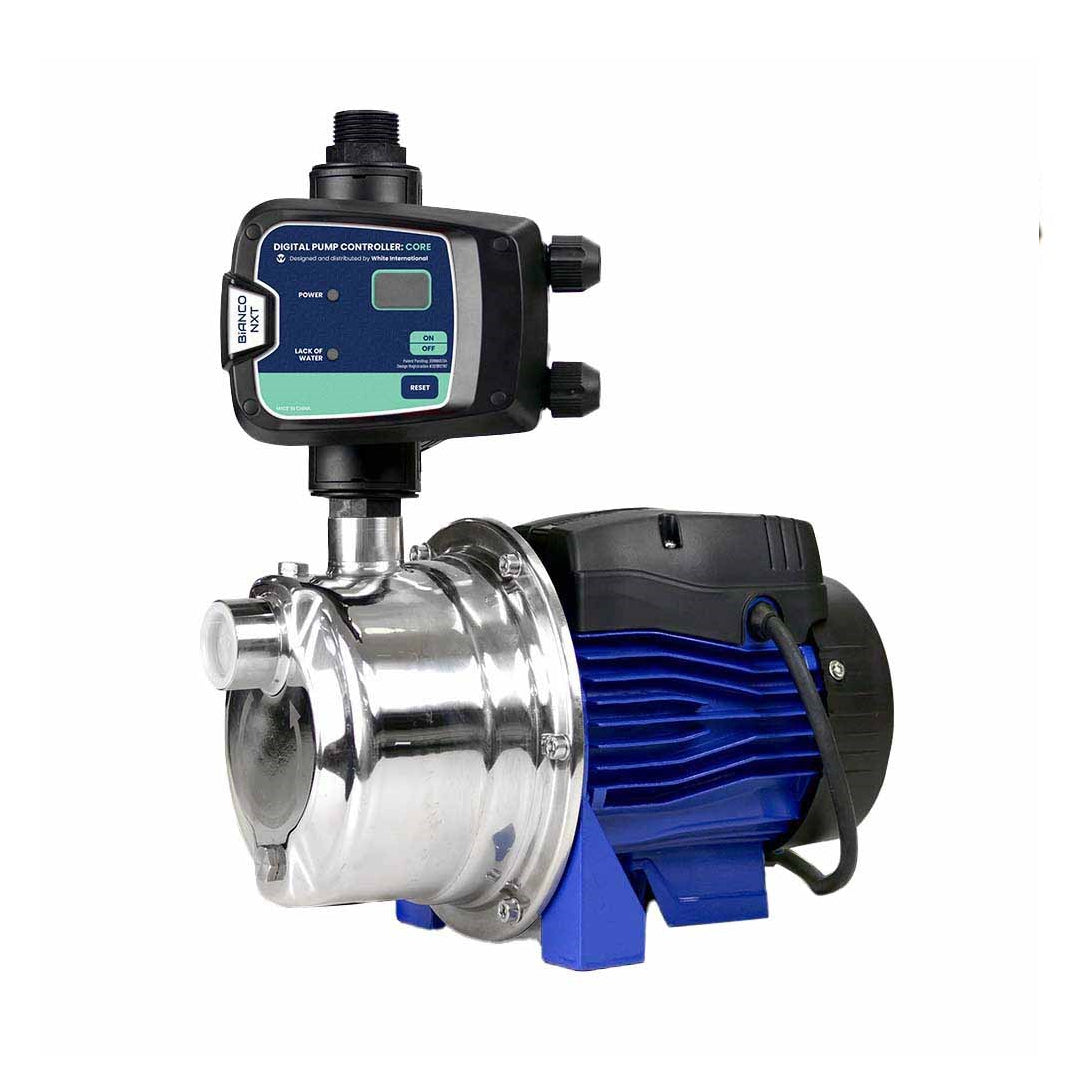

Bianco INOX60S2NXT Automatic Domestic Jet Pump

The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.

The pump is characterized by:

• Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.

• Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.

• Run dry protection to prevent pump damage.

• Automatic electronic control has in-built check valve to prevent water backflow through the pump.

• 2.2bar pump cut in for greater versatility.

• Corrosion resistant pump body, diffuser and impeller to ensure pump durability.

• High quality mechanical shaft seal and high quality bearings.

• 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.

Applications:

• Used especially for supplying water to domestic installations and applications where a suction lift is required.

Package Information:

• L420mm x W230mm x H460mm

Motor / power: 600W
Max. flow: 62 L/min
Taps: 5 taps (calculated at 8lt/min)
Head: 42m
Suction hose diameter: 1″ / 25mm
Pressure: 420kPa
Body / Impeller: Technopolymer
Diffuser: Noryl Glass Reinforced
Mechanical Seal : Carbon / Ceramic / Nitrile
Warranty on pump: 2 Years
