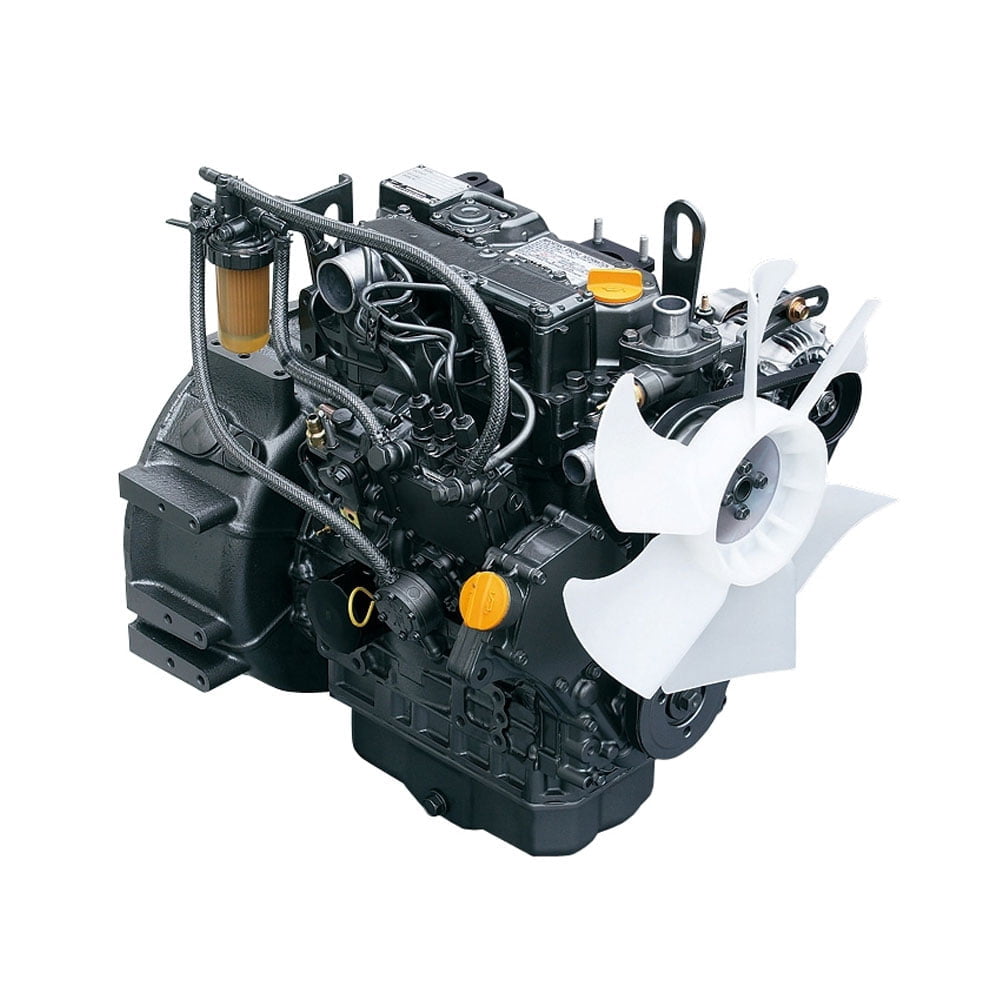

Yanmar 3TNV70 22.8HP Watercooled Diesel Engine
Yanmar 3TNV70 22.8HP Watercooled Diesel Engine is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We Offer Delivery Australia Wide - Delivery Estimate is available on the Cart Page and calculated on the Checkout Page.
Yanmar 3TNV70 22.8HP Watercooled Diesel Engine
Description
Description
The TNV engines now proudly take up the running as Yanmar’s premium small
industrial diesel. They offer even more enhanced durability due to better block
cooling, a stiffer crank and pistons, finer tolerance in the journal and more.
CAE analysis has brought lower vibrations and higher strength to the mounting
structure for even better reliability in heavy-duty jobs.
| SPECIFICATION | ASA |
| CYLINDERS | 3 |
| BORE x STROKE (mm) | 70 x 74 |
| DISPLACEMENT in3 (cc) | 52.1 (854) |
| GROSS POWER Hp | 22.8 |
| RATED SPEED rpm | 3600 |
| LENGTH w/fan in (mm) | 20.8 (528.3) |
| WIDTH in (mm) | 16.8 (426.7) |
| HEIGHT in (mm) | 21.5 (546.1) |
| WEIGHT lbs (kg) | ~ 220 (99.8) |
| COMBUSTION TYPE | Indirect Injection |
| ASPIRATION | Naturally Aspirated |
| GOVERNOR TYPE | Mechanical |
